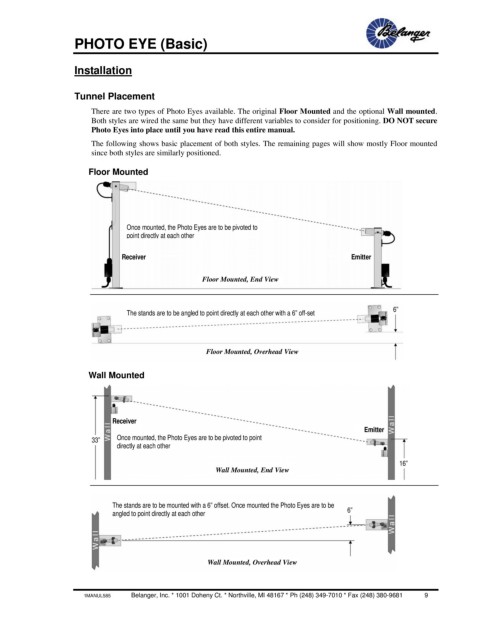

PHOTO EYE (Basic)
Installation
Tunnel Placement
There are two types of Photo Eyes available. The original Floor Mounted and the optional Wall mounted.
Both styles are wired the same but they have different variables to consider for positioning. DO NOT secure
Photo Eyes into place until you have read this entire manual.
The following shows basic placement of both styles. The remaining pages will show mostly Floor mounted
since both styles are similarly positioned.
Floor Mounted
Once mounted, the Photo Eyes are to be pivoted to
point directly at each other
Receiver Emitter
Floor Mounted, End View
6”
The stands are to be angled to point directly at each other with a 6” off-set
Floor Mounted, Overhead View
Wall Mounted
Receiver
Emitter
33” Once mounted, the Photo Eyes are to be pivoted to point
directly at each other
16”
Wall Mounted, End View
The stands are to be mounted with a 6” offset. Once mounted the Photo Eyes are to be
angled to point directly at each other 6”
Wall Mounted, Overhead View
1MANUL585 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 9
