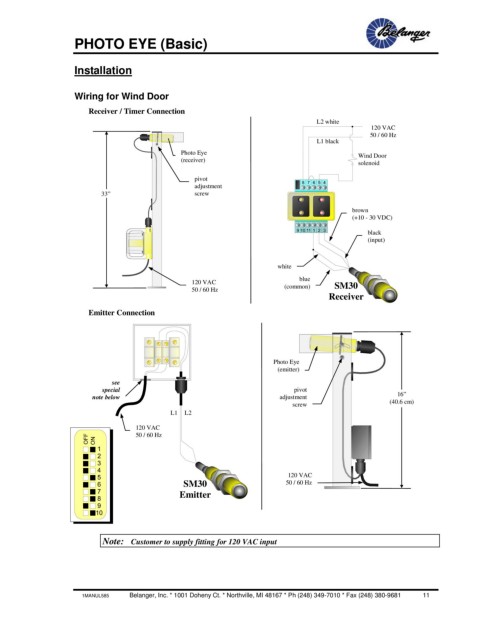

PHOTO EYE (Basic)

Installation

Wiring for Wind Door

Receiver / Timer Connection
L2 white
120 VAC
50 / 60 Hz
L1 black

Photo Eye
(receiver) Wind Door
solenoid

pivot
adjustment
33” screw

brown
(+10 - 30 VDC)

black
(input)

white

120 VAC blue SM30
50 / 60 Hz (common)
Receiver
Emitter Connection

Photo Eye

(emitter)

see
special
pivot
note below adjustment 16”
screw (40.6 cm)
L1 L2

120 VAC
50 / 60 Hz

120 VAC
SM30 50 / 60 Hz

Emitter

Note: Customer to supply fitting for 120 VAC input
