Page 64 - Sudzameleon® Arch

®
SUDZAMELEON ARCH

Maintenance
Replacement Parts

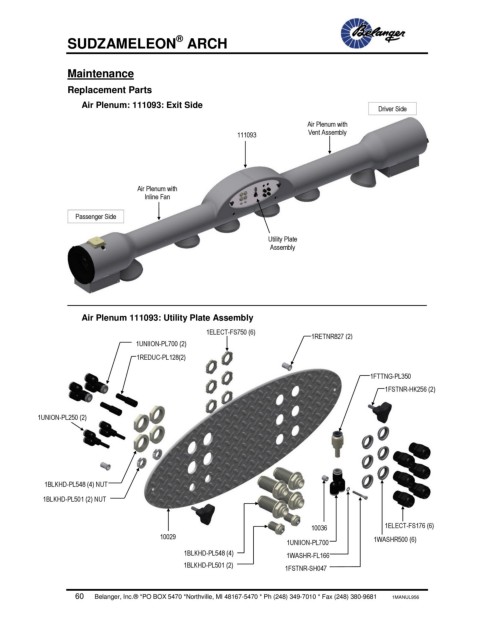

Air Plenum: 111093: Exit Side
Driver Side
Air Plenum with
111093 Vent Assembly

Air Plenum with
Inline Fan
Assembly
Passenger Side

Utility Plate
Assembly

Air Plenum 111093: Utility Plate Assembly
1ELECT-FS750 (6)
1UNIION-PL700 (2) 1RETNR827 (2)
1REDUC-PL128(2)

1FTTNG-PL350
1FSTNR-HK256 (2)

1UNION-PL250 (2)

1BLKHD-PL548 (4) NUT
1BLKHD-PL501 (2) NUT

10036 1ELECT-FS176 (6)
10029 1WASHR500 (6)
1UNIION-PL700

1BLKHD-PL548 (4) 1WASHR-FL166
1BLKHD-PL501 (2) 1FSTNR-SH047
