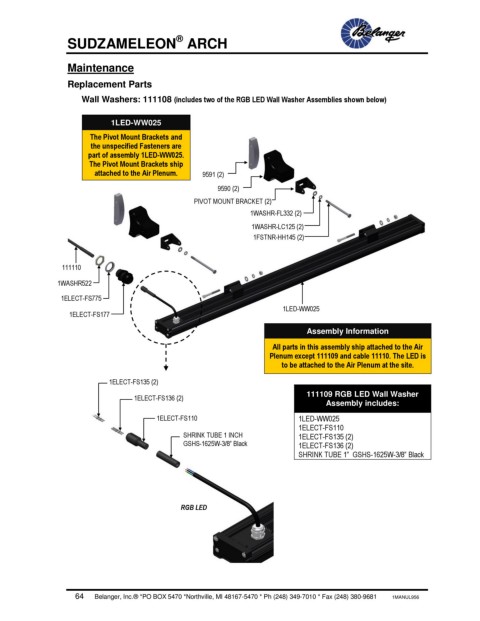

SUDZAMELEON ARCH

Maintenance
Replacement Parts

Wall Washers: 111108 (includes two of the RGB LED Wall Washer Assemblies shown below)

1LED-WW025

The Pivot Mount Brackets and
the unspecified Fasteners are
part of assembly 1LED-WW025.
The Pivot Mount Brackets ship
attached to the Air Plenum. 9591 (2)
9590 (2)
PIVOT MOUNT BRACKET (2)
1WASHR-FL332 (2)

1WASHR-LC125 (2)
1FSTNR-HH145 (2)

111110
1WASHR522

1ELECT-FS775
1LED-WW025
1ELECT-FS177
Assembly Information

All parts in this assembly ship attached to the Air
Plenum except 111109 and cable 11110. The LED is
to be attached to the Air Plenum at the site.

1ELECT-FS135 (2)
111109 RGB LED Wall Washer
1ELECT-FS136 (2)
Assembly includes:
1ELECT-FS110 1LED-WW025
SHRINK TUBE 1 INCH 1ELECT-FS110
1ELECT-FS135 (2)
GSHS-1625W-3/8” Black 1ELECT-FS136 (2)
SHRINK TUBE 1” GSHS-1625W-3/8” Black

RGB LED
