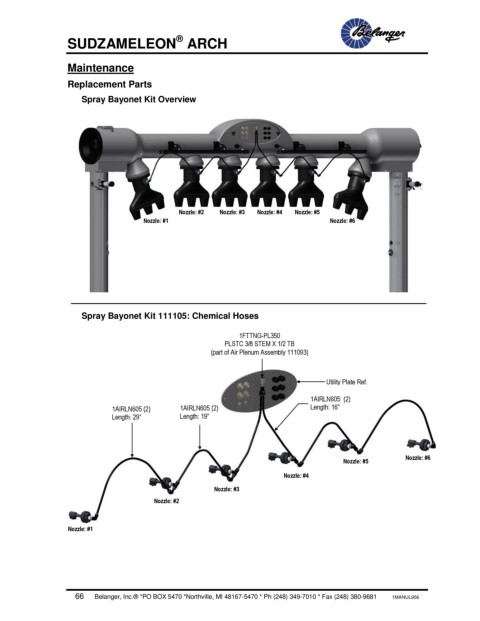

SUDZAMELEON ARCH
Maintenance
Replacement Parts
Spray Bayonet Kit Overview
Nozzle: #2 Nozzle: #3 Nozzle: #4 Nozzle: #5
Nozzle: #1 Nozzle: #6
Spray Bayonet Kit 111105: Chemical Hoses
1FTTNG-PL350
PLSTC 3/8 STEM X 1/2 TB
(part of Air Plenum Assembly 111093)
Utility Plate Ref.
1AIRLN605 (2)
1AIRLN605 (2) 1AIRLN605 (2) Length: 16”
Length: 29” Length: 19”
Nozzle: #6
Nozzle: #5
Nozzle: #4
Nozzle: #3
Nozzle: #2
Nozzle: #1
