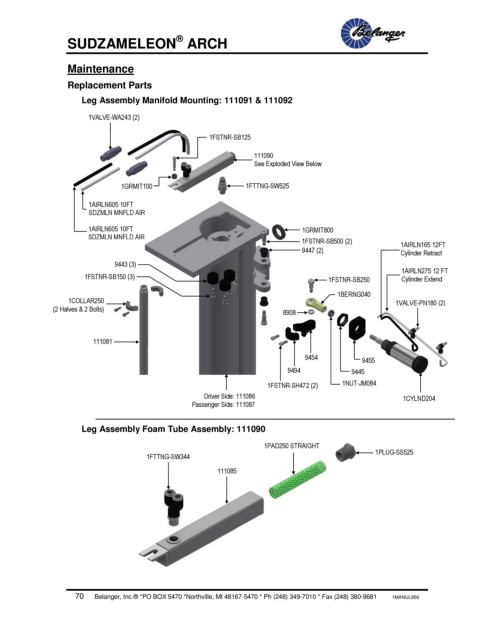

Page 74 - Sudzameleon® Arch

®
SUDZAMELEON ARCH

Maintenance

Replacement Parts
Leg Assembly Manifold Mounting: 111091 & 111092

1VALVE-WA243 (2)

1FSTNR-SB125

111090
See Exploded View Below

1GRMIT100 1FTTNG-SW525

1AIRLN605 10FT
SDZMLN MNFLD AIR

1AIRLN605 10FT 1GRMIT800
SDZMLN MNFLD AIR
1FSTNR-SB500 (2) 1AIRLN165 12FT
9447 (2) Cylinder Retract

9443 (3)
1AIRLN275 12 FT
1FSTNR-SB150 (3) 1FSTNR-SB250 Cylinder Extend
1BERNG040
1COLLAR250 1VALVE-PN180 (2)
(2 Halves & 2 Bolts)
8908

111081
9454 9455
9494 9445

1FSTNR-SH472 (2) 1NUT-JM084

Driver Side: 111086 1CYLND204
Passenger Side: 111087

Leg Assembly Foam Tube Assembly: 111090
1PAD250 STRAIGHT
1FTTNG-SW344 1PLUG-SS525
111085

70 Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL956
