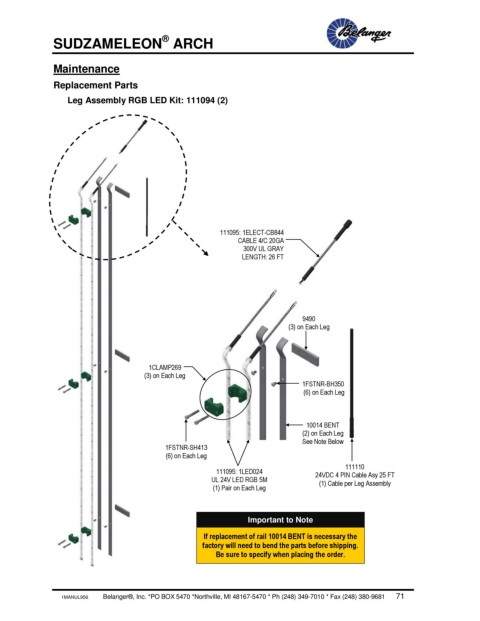

SUDZAMELEON ARCH

Maintenance

Replacement Parts
Leg Assembly RGB LED Kit: 111094 (2)

111095: 1ELECT-CB844
CABLE 4/C 20GA
300V UL GRAY
LENGTH: 26 FT

9490
(3) on Each Leg

1CLAMP269
(3) on Each Leg
1FSTNR-BH350
(6) on Each Leg

10014 BENT
(2) on Each Leg
See Note Below
1FSTNR-SH413
(6) on Each Leg
111110
111095: 1LED024 24VDC 4 PIN Cable Asy 25 FT
UL 24V LED RGB 5M (1) Cable per Leg Assembly
(1) Pair on Each Leg

Important to Note

If replacement of rail 10014 BENT is necessary the
factory will need to bend the parts before shipping.
Be sure to specify when placing the order.
