Page 79 - Sudzameleon® Arch

®
SUDZAMELEON ARCH

Maintenance

Replacement Parts

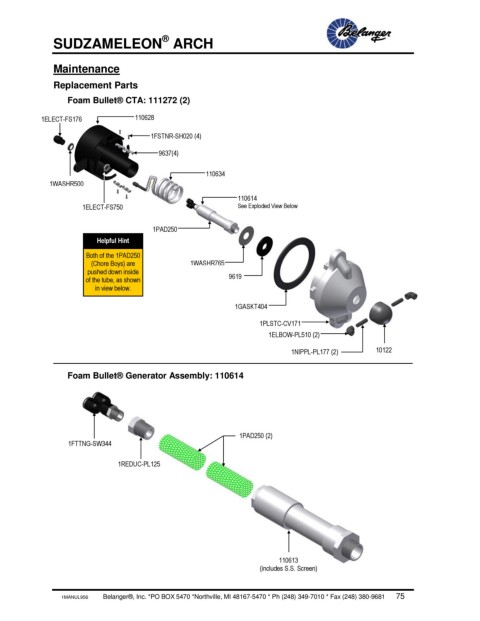

Foam Bullet® CTA: 111272 (2)

1ELECT-FS176 110628
1FSTNR-SH020 (4)

9637(4)

110634
1WASHR500
110614
1ELECT-FS750 See Exploded View Below

1PAD250
Helpful Hint (2)
Both of the 1PAD250
(Chore Boys) are 1WASHR765
pushed down inside
of the tube, as shown 9619
in view below.

1GASKT404

1PLSTC-CV171
1ELBOW-PL510 (2)
10122
1NIPPL-PL177 (2)

Foam Bullet® Generator Assembly: 110614

1PAD250 (2)
1FTTNG-SW344

1REDUC-PL125

110613
(includes S.S. Screen)
