SUDZAMELEON ARCH

Maintenance
Replacement Parts

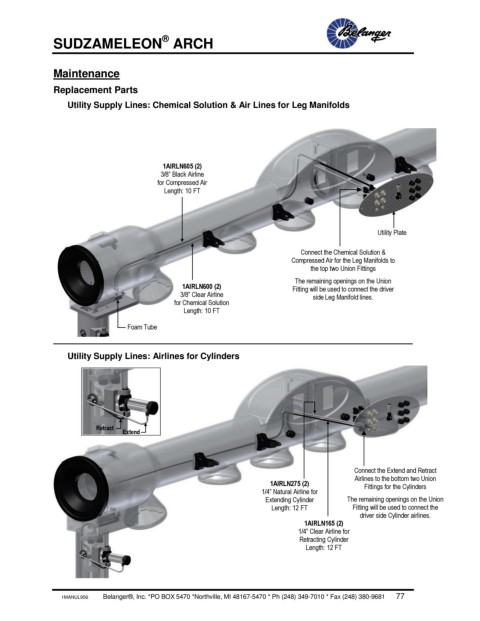

Utility Supply Lines: Chemical Solution & Air Lines for Leg Manifolds

1AIRLN605 (2)
3/8” Black Airline
for Compressed Air
Length: 10 FT

Utility Plate

Connect the Chemical Solution &
Compressed Air for the Leg Manifolds to
the top two Union Fittings

The remaining openings on the Union
1AIRLN600 (2) Fitting will be used to connect the driver
3/8” Clear Airline side Leg Manifold lines.
for Chemical Solution
Length: 10 FT

Foam Tube

Utility Supply Lines: Airlines for Cylinders

Retract
Extend

Connect the Extend and Retract
Airlines to the bottom two Union
1AIRLN275 (2) Fittings for the Cylinders
1/4” Natural Airline for
Extending Cylinder The remaining openings on the Union
Length: 12 FT Fitting will be used to connect the
driver side Cylinder airlines.
1AIRLN165 (2)
1/4” Clear Airline for
Retracting Cylinder
Length: 12 FT

1MANUL956 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 77
