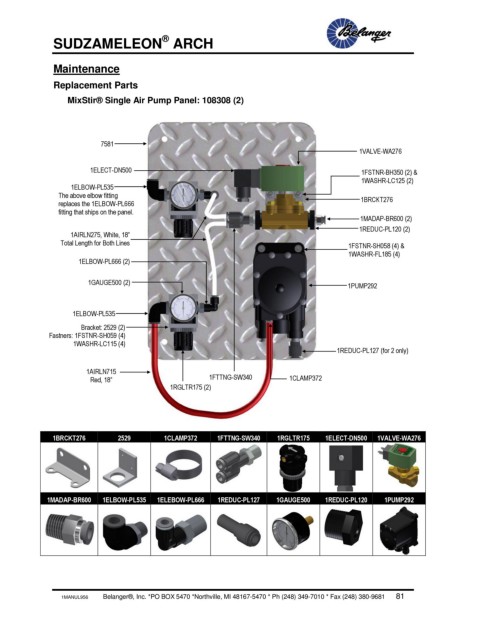

SUDZAMELEON ARCH

Maintenance

Replacement Parts
MixStir® Single Air Pump Panel: 108308 (2)

7581
1VALVE-WA276

1ELECT-DN500 1FSTNR-BH350 (2) &
1WASHR-LC125 (2)
1ELBOW-PL535
The above elbow fitting 1BRCKT276

replaces the 1ELBOW-PL666

fitting that ships on the panel.
1MADAP-BR600 (2)

1AIRLN275, White, 18” 1REDUC-PL120 (2)

Total Length for Both Lines 1FSTNR-SH058 (4) &
1WASHR-FL185 (4)
1ELBOW-PL666 (2)
1GAUGE500 (2)
1PUMP292

1ELBOW-PL535

Bracket: 2529 (2)

Fastners: 1FSTNR-SH059 (4)
1WASHR-LC115 (4) 1REDUC-PL127 (for 2 only)

1AIRLN715

Red, 18” 1FTTNG-SW340 1CLAMP372
1RGLTR175 (2)

1BRCKT276 2529 1CLAMP372 1FTTNG-SW340 1RGLTR175 1ELECT-DN500 1VALVE-WA276

1MADAP-BR600 1ELBOW-PL535 1ELEBOW-PL666 1REDUC-PL127 1GAUGE500 1REDUC-PL120 1PUMP292
