SUDZAMELEON ARCH

Maintenance

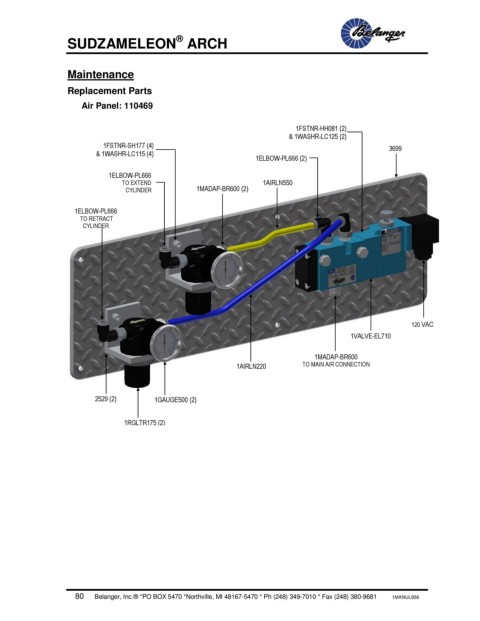

Replacement Parts
Air Panel: 110469

1FSTNR-HH081 (2)
& 1WASHR-LC125 (2)
1FSTNR-SH177 (4) 3699
& 1WASHR-LC115 (4)
1ELBOW-PL666 (2)
1ELBOW-PL666
TO EXTEND 1AIRLN550
CYLINDER 1MADAP-BR600 (2)

1ELBOW-PL666
TO RETRACT
CYLINDER

120 VAC
1VALVE-EL710

1MADAP-BR600
1AIRLN220 TO MAIN AIR CONNECTION

2529 (2) 1GAUGE500 (2)

1RGLTR175 (2)
