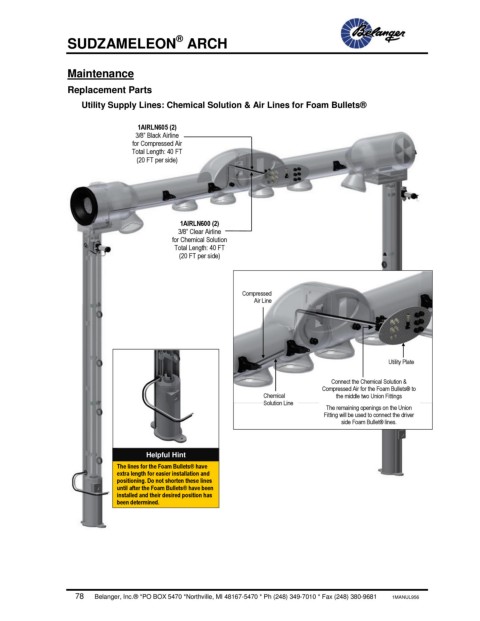

SUDZAMELEON ARCH

Maintenance
Replacement Parts

Utility Supply Lines: Chemical Solution & Air Lines for Foam Bullets®

1AIRLN605 (2)
3/8” Black Airline
for Compressed Air
Total Length: 40 FT
(20 FT per side)

1AIRLN600 (2)
3/8” Clear Airline
for Chemical Solution
Total Length: 40 FT
(20 FT per side)

Compressed
Air Line

Utility Plate

Connect the Chemical Solution &
Compressed Air for the Foam Bullets® to
Chemical the middle two Union Fittings
Solution Line
The remaining openings on the Union
Fitting will be used to connect the driver
side Foam Bullet® lines.

Helpful Hint
The lines for the Foam Bullets® have
extra length for easier installation and
positioning. Do not shorten these lines
until after the Foam Bullets® have been
installed and their desired position has
been determined.
