SUDZAMELEON ARCH

Maintenance
Replacement Parts

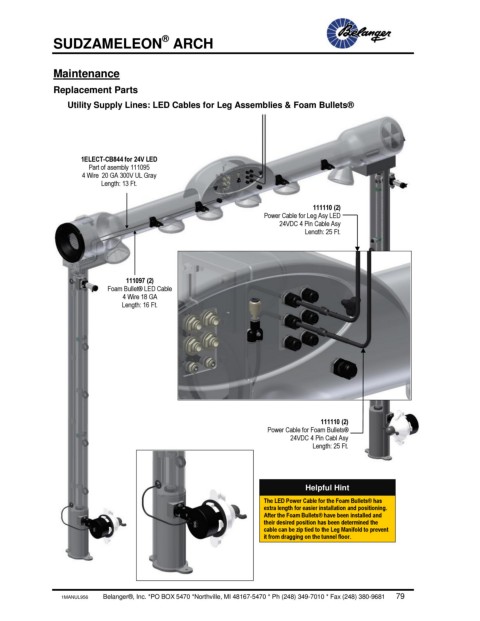

Utility Supply Lines: LED Cables for Leg Assemblies & Foam Bullets®

1ELECT-CB844 for 24V LED
Part of asembly 111095
4 Wire 20 GA 300V UL Gray
Length: 13 Ft.

111110 (2)
Power Cable for Leg Asy LED
24VDC 4 Pin Cable Asy
Length: 25 Ft.

111097 (2)
Foam Bullet® LED Cable
4 Wire 18 GA
Length: 16 Ft.

111110 (2)
Power Cable for Foam Bullets®
24VDC 4 Pin Cabl Asy
Length: 25 Ft.

Helpful Hint
The LED Power Cable for the Foam Bullets® has
extra length for easier installation and positioning.
After the Foam Bullets® have been installed and
their desired position has been determined the
cable can be zip tied to the Leg Manifold to prevent
it from dragging on the tunnel floor.
