SUDZAMELEON ARCH

Maintenance

Replacement Parts

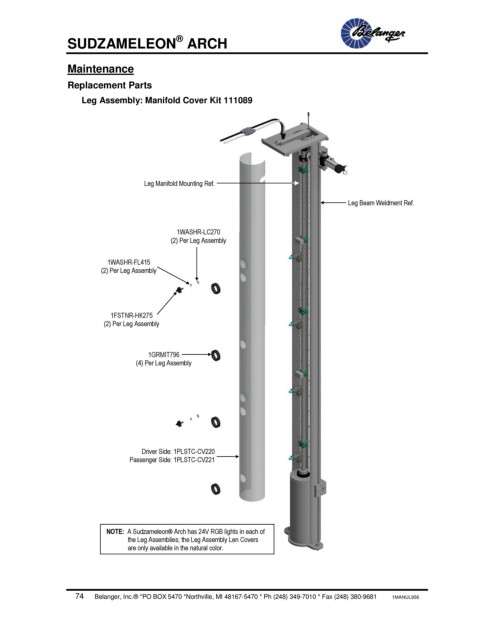

Leg Assembly: Manifold Cover Kit 111089

Leg Manifold Mounting Ref.

Leg Beam Weldment Ref.

1WASHR-LC270
(2) Per Leg Assembly

1WASHR-FL415
(2) Per Leg Assembly

1FSTNR-HK275
(2) Per Leg Assembly

1GRMIT796
(4) Per Leg Assembly

Driver Side: 1PLSTC-CV220
Passenger Side: 1PLSTC-CV221

NOTE: A Sudzameleon® Arch has 24V RGB lights in each of
the Leg Assemblies; the Leg Assembly Len Covers
are only available in the natural color.
