SUDZAMELEON ARCH
Maintenance
Replacement Parts
Leg Assembly Manifold Mounting: 111091 & 111092
Leg Manifold Mounting

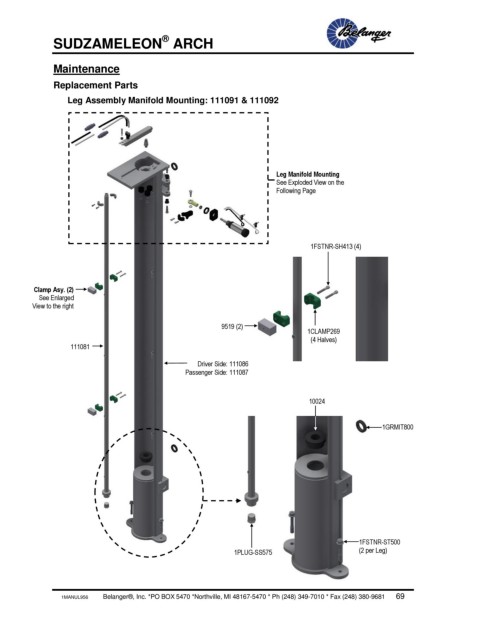

See Exploded View on the
Following Page
1FSTNR-SH413 (4)
Clamp Asy. (2)
See Enlarged
View to the right
9519 (2)
1CLAMP269
(4 Halves)
111081
Driver Side: 111086
Passenger Side: 111087
10024
1GRMIT800
1PLUG-SS575 1FSTNR-ST500
1PLUG-SS575 (2 per Leg)
