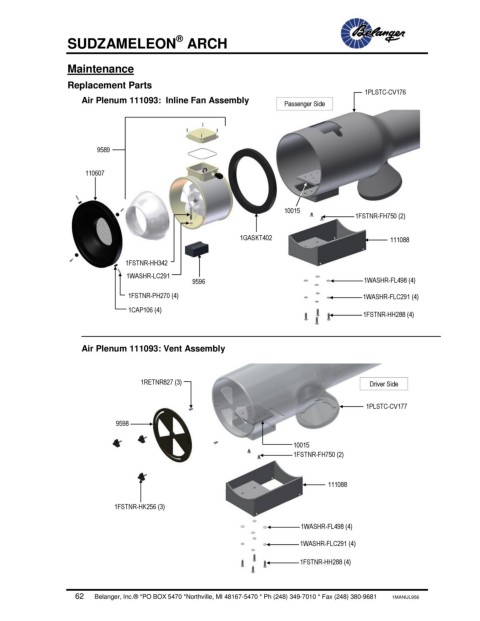

SUDZAMELEON ARCH

Maintenance

Replacement Parts
1PLSTC-CV176
Air Plenum 111093: Inline Fan Assembly Passenger Side

9589

110607

10015
1FSTNR-FH750 (2)

1GASKT402 111088

1FSTNR-HH342
1WASHR-LC291
9596 1WASHR-FL498 (4)
1FSTNR-PH270 (4) 1WASHR-FLC291 (4)

1CAP106 (4)
1FSTNR-HH288 (4)

Air Plenum 111093: Vent Assembly

1RETNR827 (3) Driver Side

1PLSTC-CV177

9598

10015
1FSTNR-FH750 (2)

111088

1FSTNR-HK256 (3)

1WASHR-FL498 (4)

1WASHR-FLC291 (4)

1FSTNR-HH288 (4)

62 Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL956
