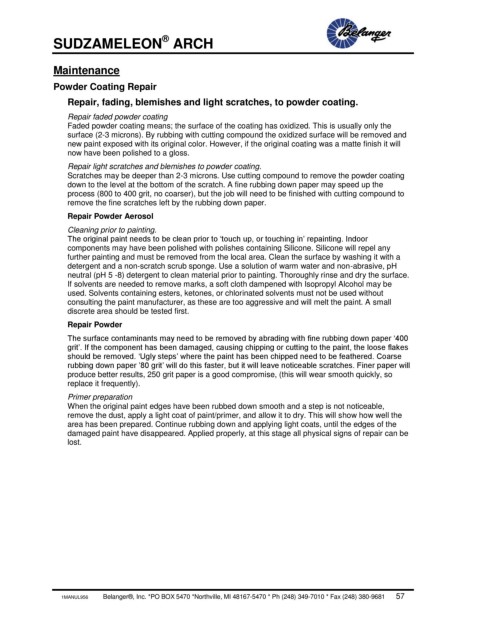

SUDZAMELEON ARCH

Maintenance

Powder Coating Repair
Repair, fading, blemishes and light scratches, to powder coating.

Repair faded powder coating
Faded powder coating means; the surface of the coating has oxidized. This is usually only the
surface (2-3 microns). By rubbing with cutting compound the oxidized surface will be removed and
new paint exposed with its original color. However, if the original coating was a matte finish it will
now have been polished to a gloss.
Repair light scratches and blemishes to powder coating.
Scratches may be deeper than 2-3 microns. Use cutting compound to remove the powder coating
down to the level at the bottom of the scratch. A fine rubbing down paper may speed up the
process (800 to 400 grit, no coarser), but the job will need to be finished with cutting compound to
remove the fine scratches left by the rubbing down paper.
Repair Powder Aerosol
Cleaning prior to painting.
The original paint needs to be clean prior to ‘touch up, or touching in’ repainting. Indoor
components may have been polished with polishes containing Silicone. Silicone will repel any
further painting and must be removed from the local area. Clean the surface by washing it with a
detergent and a non-scratch scrub sponge. Use a solution of warm water and non-abrasive, pH
neutral (pH 5 -8) detergent to clean material prior to painting. Thoroughly rinse and dry the surface.
If solvents are needed to remove marks, a soft cloth dampened with Isopropyl Alcohol may be
used. Solvents containing esters, ketones, or chlorinated solvents must not be used without
consulting the paint manufacturer, as these are too aggressive and will melt the paint. A small
discrete area should be tested first.
Repair Powder
The surface contaminants may need to be removed by abrading with fine rubbing down paper ‘400
grit’. If the component has been damaged, causing chipping or cutting to the paint, the loose flakes
should be removed. ‘Ugly steps’ where the paint has been chipped need to be feathered. Coarse
rubbing down paper ’80 grit’ will do this faster, but it will leave noticeable scratches. Finer paper will
produce better results, 250 grit paper is a good compromise, (this will wear smooth quickly, so
replace it frequently).

Primer preparation
When the original paint edges have been rubbed down smooth and a step is not noticeable,
remove the dust, apply a light coat of paint/primer, and allow it to dry. This will show how well the
area has been prepared. Continue rubbing down and applying light coats, until the edges of the
damaged paint have disappeared. Applied properly, at this stage all physical signs of repair can be
lost.
