SUDZAMELEON ARCH

Utilities

Initial Startup Procedures
CTA Foam Bullets®

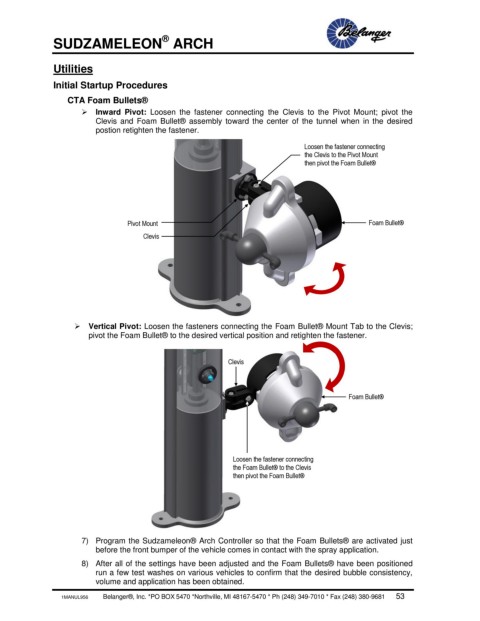

 Inward Pivot: Loosen the fastener connecting the Clevis to the Pivot Mount; pivot the
Clevis and Foam Bullet® assembly toward the center of the tunnel when in the desired
postion retighten the fastener.

Loosen the fastener connecting
the Clevis to the Pivot Mount
then pivot the Foam Bullet®

Pivot Mount Foam Bullet®
Clevis

 Vertical Pivot: Loosen the fasteners connecting the Foam Bullet® Mount Tab to the Clevis;
pivot the Foam Bullet® to the desired vertical position and retighten the fastener.

Clevis

Foam Bullet®

Loosen the fastener connecting
the Foam Bullet® to the Clevis
then pivot the Foam Bullet®

7) Program the Sudzameleon® Arch Controller so that the Foam Bullets® are activated just
before the front bumper of the vehicle comes in contact with the spray application.
8) After all of the settings have been adjusted and the Foam Bullets® have been positioned
run a few test washes on various vehicles to confirm that the desired bubble consistency,
volume and application has been obtained.
1MANUL956 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 53
