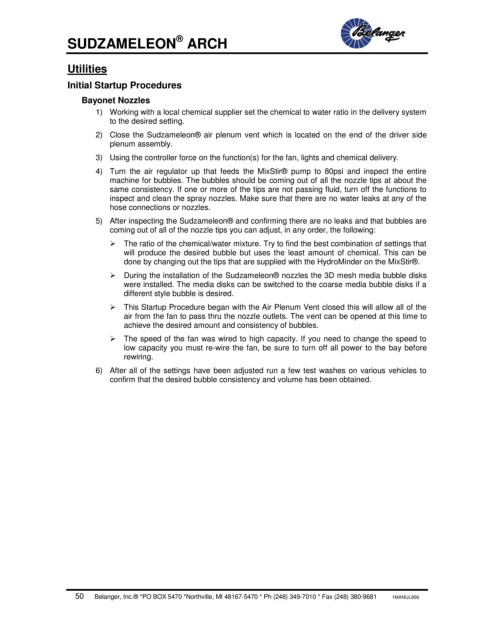

                  SUDZAMELEON  ARCH


                  Utilities

                  Initial Startup Procedures
                      Bayonet Nozzles
                         1)  Working with a local chemical supplier set the chemical to water ratio in the delivery system
                             to the desired setting.

                         2)  Close the Sudzameleon® air plenum vent which is located on the end of the driver side
                             plenum assembly.
                         3)  Using the controller force on the function(s) for the fan, lights and chemical delivery.
                         4)  Turn  the  air  regulator  up  that  feeds  the  MixStir®  pump  to  80psi  and  inspect  the  entire
                             machine for bubbles. The bubbles should be coming out of all the nozzle tips at about the
                             same consistency. If one or more of the tips are not passing fluid, turn off the functions to
                             inspect and clean the spray nozzles. Make sure that there are no water leaks at any of the
                             hose connections or nozzles.
                         5)  After inspecting the Sudzameleon® and confirming there are no leaks and that bubbles are
                             coming out of all of the nozzle tips you can adjust, in any order, the following:
                               The ratio of the chemical/water mixture. Try to find the best combination of settings that
                                 will  produce  the  desired  bubble  but  uses  the  least  amount  of chemical. This  can  be
                                 done by changing out the tips that are supplied with the HydroMinder on the MixStir®.
                               During the installation of the Sudzameleon® nozzles the 3D mesh media bubble disks
                                 were installed. The media disks can be switched to the coarse media bubble disks if a
                                 different style bubble is desired.
                               This Startup Procedure began with the Air Plenum Vent closed this will allow all of the
                                 air from the fan to pass thru the nozzle outlets. The vent can be opened at this time to
                                 achieve the desired amount and consistency of bubbles.
                               The speed of the fan was wired to high capacity. If you need to change the speed to
                                 low capacity you must re-wire the fan, be sure to turn off all power to the bay before
                                 rewiring.
                         6)  After all of the settings have been adjusted run a few test washes on various vehicles to
                             confirm that the desired bubble consistency and volume has been obtained.































                    50     Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681       1MANUL956
