SUDZAMELEON ARCH

Utilities

Initial Startup Procedures
Leg Assembly Manifolds
1) Run water through the Sudzameleon® Arch and verify that there are no leaks in any of the
fittings or connections in the Leg Manifold Assemblies.
2) Actuate the 4-way valve on the air panel.
3) Verify that the Leg Manifold Assemblies ROTATE correctly.

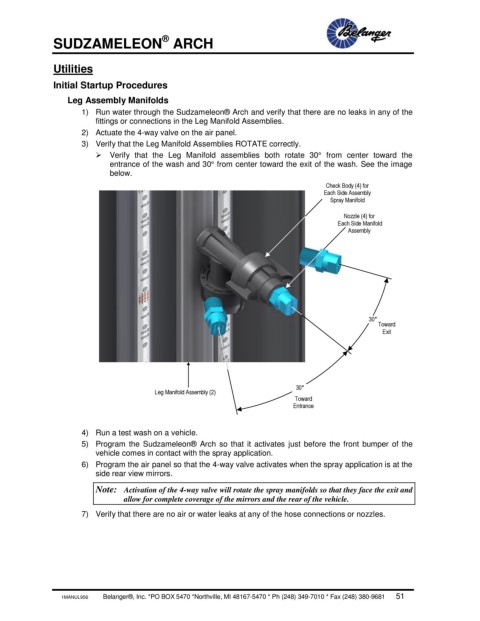

 Verify that the Leg Manifold assemblies both rotate 30° from center toward the
entrance of the wash and 30° from center toward the exit of the wash. See the image
below.
Check Body (4) for
Each Side Assembly
Spray Manifold

Nozzle (4) for
Each Side Manifold
Assembly

30°
Toward
Exit

Leg Manifold Assembly (2) 30°
Toward
Entrance

4) Run a test wash on a vehicle.
5) Program the Sudzameleon® Arch so that it activates just before the front bumper of the
vehicle comes in contact with the spray application.
6) Program the air panel so that the 4-way valve activates when the spray application is at the
side rear view mirrors.

Note: Activation of the 4-way valve will rotate the spray manifolds so that they face the exit and
allow for complete coverage of the mirrors and the rear of the vehicle.
7) Verify that there are no air or water leaks at any of the hose connections or nozzles.
