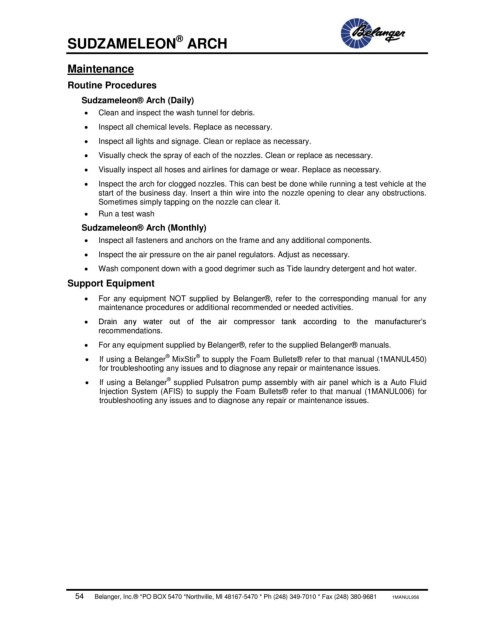

SUDZAMELEON ARCH

Maintenance

Routine Procedures
Sudzameleon® Arch (Daily)
 Clean and inspect the wash tunnel for debris.

 Inspect all chemical levels. Replace as necessary.
 Inspect all lights and signage. Clean or replace as necessary.
 Visually check the spray of each of the nozzles. Clean or replace as necessary.
 Visually inspect all hoses and airlines for damage or wear. Replace as necessary.
 Inspect the arch for clogged nozzles. This can best be done while running a test vehicle at the
start of the business day. Insert a thin wire into the nozzle opening to clear any obstructions.
Sometimes simply tapping on the nozzle can clear it.
 Run a test wash

Sudzameleon® Arch (Monthly)
 Inspect all fasteners and anchors on the frame and any additional components.
 Inspect the air pressure on the air panel regulators. Adjust as necessary.
 Wash component down with a good degrimer such as Tide laundry detergent and hot water.
Support Equipment

 For any equipment NOT supplied by Belanger®, refer to the corresponding manual for any
maintenance procedures or additional recommended or needed activities.

 Drain any water out of the air compressor tank according to the manufacturer’s
recommendations.
 For any equipment supplied by Belanger®, refer to the supplied Belanger® manuals.
®
®
 If using a Belanger MixStir to supply the Foam Bullets® refer to that manual (1MANUL450)
for troubleshooting any issues and to diagnose any repair or maintenance issues.
®
 If using a Belanger supplied Pulsatron pump assembly with air panel which is a Auto Fluid
Injection System (AFIS) to supply the Foam Bullets® refer to that manual (1MANUL006) for
troubleshooting any issues and to diagnose any repair or maintenance issues.
