SUDZAMELEON ARCH

Utilities

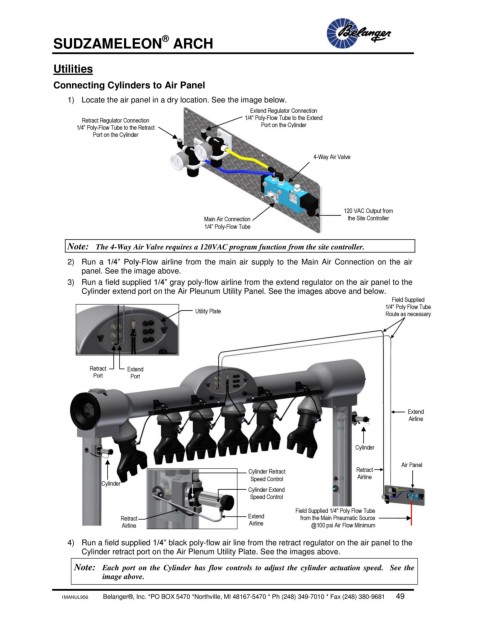

Connecting Cylinders to Air Panel
1) Locate the air panel in a dry location. See the image below.
Extend Regulator Connection
Retract Regulator Connection 1/4” Poly-Flow Tube to the Extend
1/4” Poly-Flow Tube to the Retract Port on the Cylinder
Port on the Cylinder

4-Way Air Valve

120 VAC Output from
Main Air Connection the Site Controller
1/4” Poly-Flow Tube

Note: The 4-Way Air Valve requires a 120VAC program function from the site controller.
2) Run a 1/4” Poly-Flow airline from the main air supply to the Main Air Connection on the air
panel. See the image above.
3) Run a field supplied 1/4” gray poly-flow airline from the extend regulator on the air panel to the
Cylinder extend port on the Air Pleunum Utility Panel. See the images above and below.
Field Supplied
1/4" Poly Flow Tube
Utility Plate Route as necessary

Retract Extend
Port Port

Extend
Airline

Cylinder

Air Panel
Cylinder Retract Retract
Speed Control Airline
Cylinder
Cylinder Extend
Speed Control
Field Supplied 1/4" Poly Flow Tube
Retract Extend from the Main Pneumatic Source
Airline Airline @100 psi Air Flow Minimum

4) Run a field supplied 1/4” black poly-flow air line from the retract regulator on the air panel to the
Cylinder retract port on the Air Plenum Utility Plate. See the images above.

Note: Each port on the Cylinder has flow controls to adjust the cylinder actuation speed. See the

image above.
