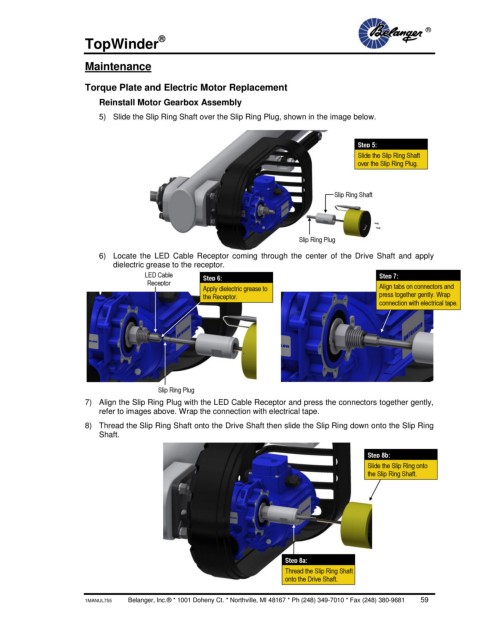

Maintenance

Torque Plate and Electric Motor Replacement

Reinstall Motor Gearbox Assembly
5) Slide the Slip Ring Shaft over the Slip Ring Plug, shown in the image below.

Step 5:
Slide the Slip Ring Shaft
over the Slip Ring Plug.

Slip Ring Shaft

Slip Ring Plug

6) Locate the LED Cable Receptor coming through the center of the Drive Shaft and apply
dielectric grease to the receptor.
LED Cable Step 6: Step 7:
Receptor
Apply dielectric grease to Align tabs on connectors and
the Receptor. press together gently. Wrap
connection with electrical tape.

Slip Ring Plug

7) Align the Slip Ring Plug with the LED Cable Receptor and press the connectors together gently,
refer to images above. Wrap the connection with electrical tape.

8) Thread the Slip Ring Shaft onto the Drive Shaft then slide the Slip Ring down onto the Slip Ring
Shaft.

Step 8b:
Slide the Slip Ring onto
the Slip Ring Shaft.

Step 8a:
Thread the Slip Ring Shaft
onto the Drive Shaft.
