GYRO WRAP

Installation

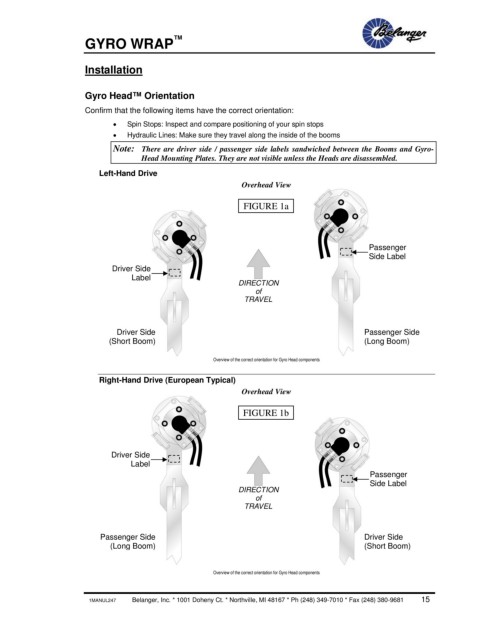

Gyro Head™ Orientation

Confirm that the following items have the correct orientation:
• Spin Stops: Inspect and compare positioning of your spin stops
• Hydraulic Lines: Make sure they travel along the inside of the booms
Note: There are driver side / passenger side labels sandwiched between the Booms and Gyro-
Head Mounting Plates. They are not visible unless the Heads are disassembled.

Left-Hand Drive
Overhead View

FIGURE 1a

Passenger
Side Label
Driver Side
Label
DIRECTION
of
TRAVEL

Driver Side Passenger Side
(Short Boom) (Long Boom)

Overview of the correct orientation for Gyro Head components

Right-Hand Drive (European Typical)
Overhead View

FIGURE 1b

Driver Side
Label
Passenger
Side Label
DIRECTION
of
TRAVEL

Passenger Side Driver Side
(Long Boom) (Short Boom)

Overview of the correct orientation for Gyro Head components
