GYRO WRAP
Installation

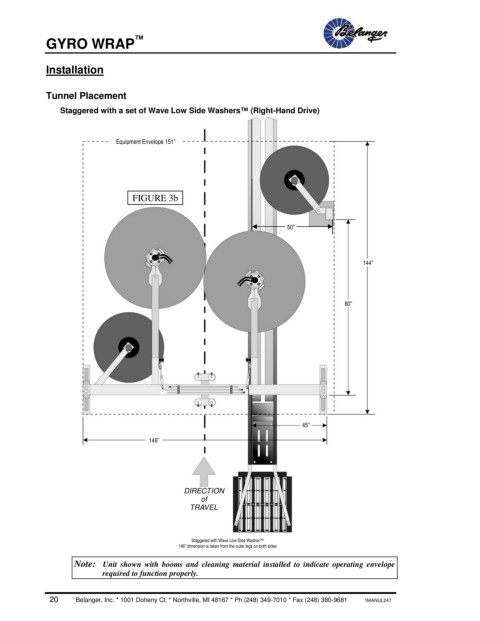

Tunnel Placement
Staggered with a set of Wave Low Side Washers™ (Right-Hand Drive)
Equipment Envelope 151”
FIGURE 3b
50”
144”
80”
45”
146”
DIRECTION
of
TRAVEL
Staggered with Wave Low Side Washer™
146” dimension is taken from the outer legs on both sides
Note: Unit shown with booms and cleaning material installed to indicate operating envelope
required to function properly.
