GYRO WRAP
Installation
Attaching the Booms continued

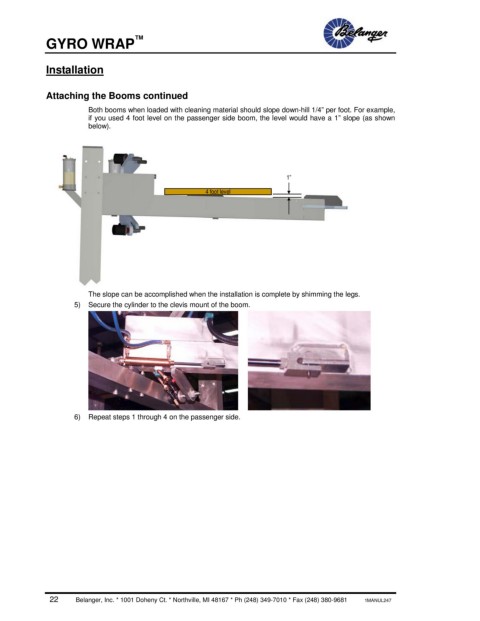

Both booms when loaded with cleaning material should slope down-hill 1/4” per foot. For example,
if you used 4 foot level on the passenger side boom, the level would have a 1” slope (as shown
below).
1”
4 foot level
The slope can be accomplished when the installation is complete by shimming the legs.
5) Secure the cylinder to the clevis mount of the boom.
6) Repeat steps 1 through 4 on the passenger side.
