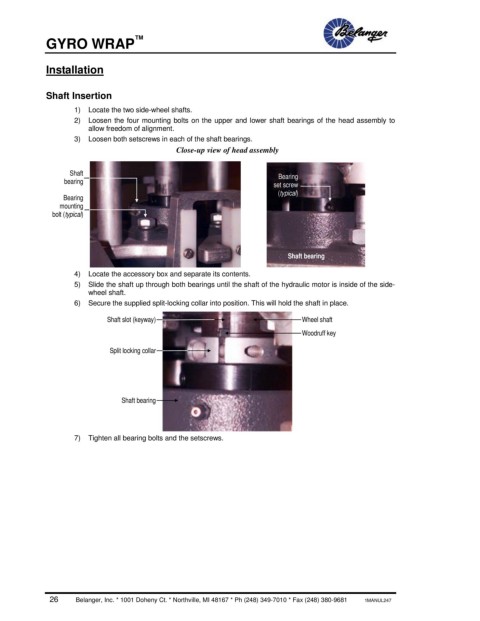

GYRO WRAP

Installation

Shaft Insertion

1) Locate the two side-wheel shafts.
2) Loosen the four mounting bolts on the upper and lower shaft bearings of the head assembly to
allow freedom of alignment.
3) Loosen both setscrews in each of the shaft bearings.
Close-up view of head assembly

Shaft Bearing
bearing set screw
(typical)
Bearing
mounting
bolt (typical)

Shaft bearing

4) Locate the accessory box and separate its contents.
5) Slide the shaft up through both bearings until the shaft of the hydraulic motor is inside of the side-
wheel shaft.
6) Secure the supplied split-locking collar into position. This will hold the shaft in place.
Shaft slot (keyway) Wheel shaft
Woodruff key

Split locking collar

Shaft bearing

7) Tighten all bearing bolts and the setscrews.
