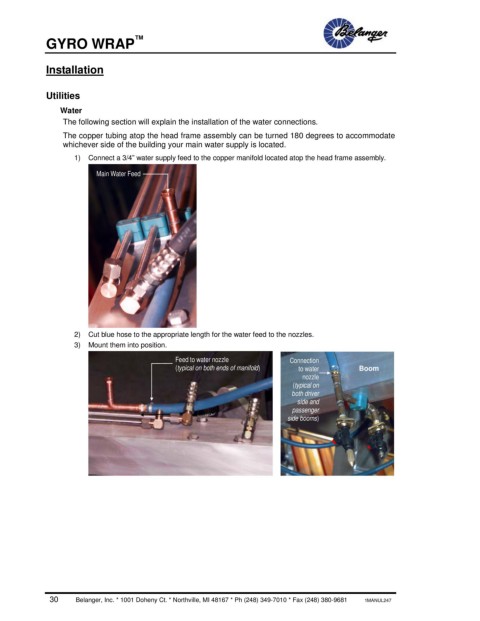

GYRO WRAP

Installation

Utilities

Water
The following section will explain the installation of the water connections.
The copper tubing atop the head frame assembly can be turned 180 degrees to accommodate
whichever side of the building your main water supply is located.
1) Connect a 3/4” water supply feed to the copper manifold located atop the head frame assembly.

Main Water Feed

2) Cut blue hose to the appropriate length for the water feed to the nozzles.
3) Mount them into position.

Feed to water nozzle Connection
(typical on both ends of manifold) to water Boom
nozzle
(typical on
both driver
side and
passenger
side booms)
