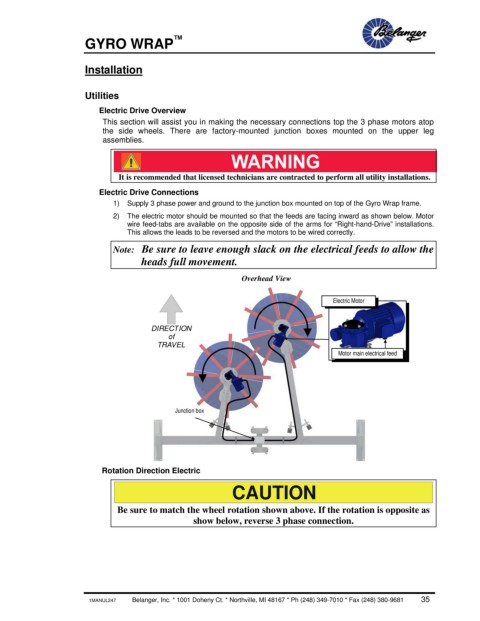

GYRO WRAP

Installation

Utilities

Electric Drive Overview
This section will assist you in making the necessary connections top the 3 phase motors atop
the side wheels. There are factory-mounted junction boxes mounted on the upper leg
assemblies.

It is recommended that licensed technicians are contracted to perform all utility installations.
Electric Drive Connections
1) Supply 3 phase power and ground to the junction box mounted on top of the Gyro Wrap frame.
2) The electric motor should be mounted so that the feeds are facing inward as shown below. Motor
wire feed-tabs are available on the opposite side of the arms for “Right-hand-Drive” installations.
This allows the leads to be reversed and the motors to be wired correctly.

Note: Be sure to leave enough slack on the electrical feeds to allow the
heads full movement.

Overhead View

Electric Motor

DIRECTION
of
TRAVEL
Motor main electrical feed

Junction box

Rotation Direction Electric

CAUTION

Be sure to match the wheel rotation shown above. If the rotation is opposite as
show below, reverse 3 phase connection.
