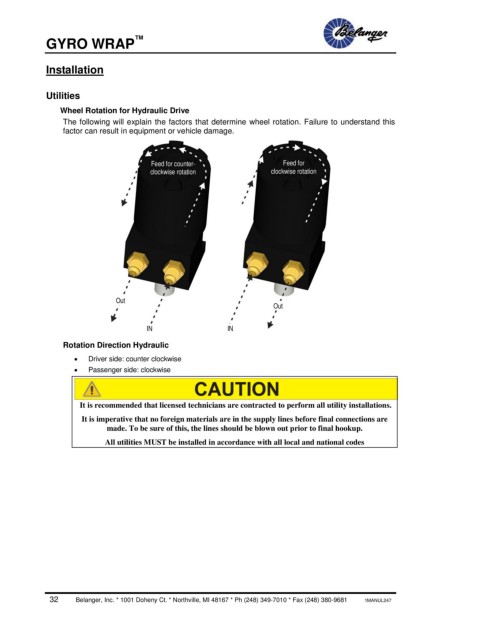

GYRO WRAP

Installation

Utilities

Wheel Rotation for Hydraulic Drive
The following will explain the factors that determine wheel rotation. Failure to understand this
factor can result in equipment or vehicle damage.

Feed for counter- Feed for
clockwise rotation clockwise rotation

Out
Out

IN IN

Rotation Direction Hydraulic

• Driver side: counter clockwise
• Passenger side: clockwise

It is recommended that licensed technicians are contracted to perform all utility installations.
It is imperative that no foreign materials are in the supply lines before final connections are
made. To be sure of this, the lines should be blown out prior to final hookup.
All utilities MUST be installed in accordance with all local and national codes

32 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL247
