P. 38
™

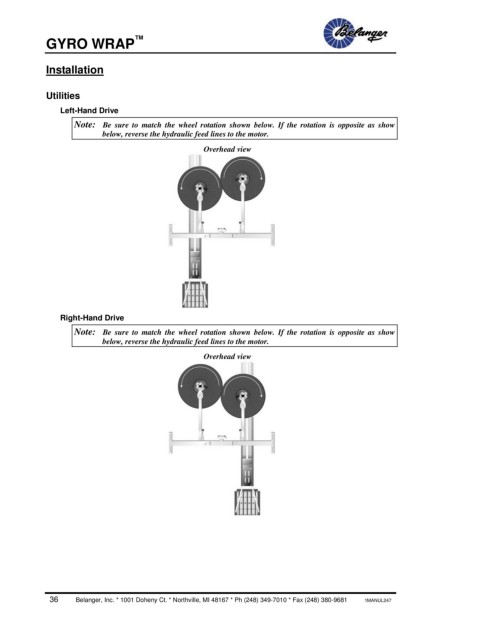

GYRO WRAP
Installation
Utilities
Left-Hand Drive
Note: Be sure to match the wheel rotation shown below. If the rotation is opposite as show
below, reverse the hydraulic feed lines to the motor.
Overhead view
Right-Hand Drive
Note: Be sure to match the wheel rotation shown below. If the rotation is opposite as show
below, reverse the hydraulic feed lines to the motor.
Overhead view
36 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL247
