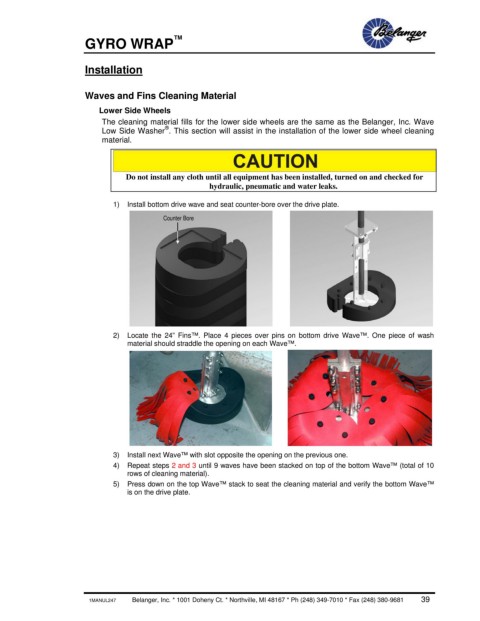

Page 41 - Gyro Wrap™

™
GYRO WRAP

Installation

Waves and Fins Cleaning Material

Lower Side Wheels
The cleaning material fills for the lower side wheels are the same as the Belanger, Inc. Wave
®
Low Side Washer . This section will assist in the installation of the lower side wheel cleaning
material.

Do not install any cloth until all equipment has been installed, turned on and checked for
hydraulic, pneumatic and water leaks.

1) Install bottom drive wave and seat counter-bore over the drive plate.
Counter Bore

2) Locate the 24” Fins™. Place 4 pieces over pins on bottom drive Wave™. One piece of wash
material should straddle the opening on each Wave™.

3) Install next Wave™ with slot opposite the opening on the previous one.
4) Repeat steps 2 and 3 until 9 waves have been stacked on top of the bottom Wave™ (total of 10
rows of cleaning material).
5) Press down on the top Wave™ stack to seat the cleaning material and verify the bottom Wave™
is on the drive plate.
