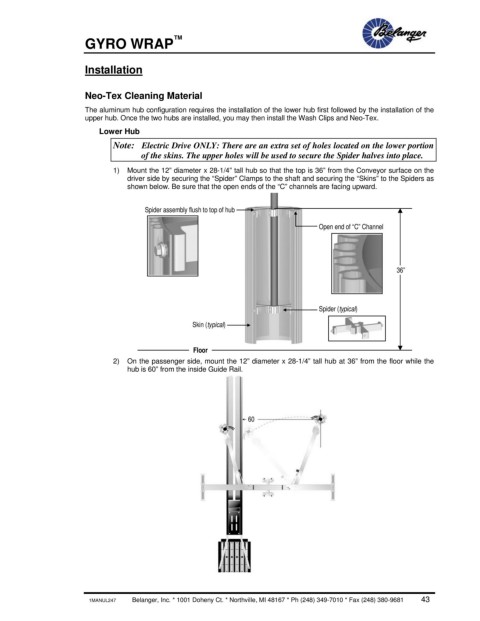

GYRO WRAP

Installation

Neo-Tex Cleaning Material

The aluminum hub configuration requires the installation of the lower hub first followed by the installation of the
upper hub. Once the two hubs are installed, you may then install the Wash Clips and Neo-Tex.
Lower Hub
Note: Electric Drive ONLY: There are an extra set of holes located on the lower portion
of the skins. The upper holes will be used to secure the Spider halves into place.
1) Mount the 12” diameter x 28-1/4” tall hub so that the top is 36” from the Conveyor surface on the
driver side by securing the “Spider” Clamps to the shaft and securing the “Skins” to the Spiders as
shown below. Be sure that the open ends of the “C” channels are facing upward.

Spider assembly flush to top of hub

Open end of “C” Channel

36”

Spider (typical)

Skin (typical)

Floor
2) On the passenger side, mount the 12” diameter x 28-1/4” tall hub at 36” from the floor while the
hub is 60” from the inside Guide Rail.

60
