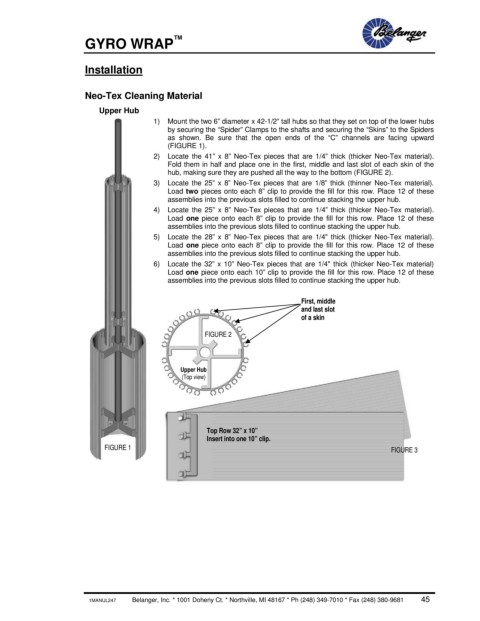

GYRO WRAP

Installation

Neo-Tex Cleaning Material

Upper Hub
1) Mount the two 6” diameter x 42-1/2” tall hubs so that they set on top of the lower hubs
by securing the “Spider” Clamps to the shafts and securing the “Skins” to the Spiders
as shown. Be sure that the open ends of the “C” channels are facing upward
(FIGURE 1).
2) Locate the 41” x 8” Neo-Tex pieces that are 1/4” thick (thicker Neo-Tex material).
Fold them in half and place one in the first, middle and last slot of each skin of the
hub, making sure they are pushed all the way to the bottom (FIGURE 2).
3) Locate the 25” x 8” Neo-Tex pieces that are 1/8” thick (thinner Neo-Tex material).
Load two pieces onto each 8” clip to provide the fill for this row. Place 12 of these
assemblies into the previous slots filled to continue stacking the upper hub.
4) Locate the 25” x 8” Neo-Tex pieces that are 1/4” thick (thicker Neo-Tex material).
Load one piece onto each 8” clip to provide the fill for this row. Place 12 of these
assemblies into the previous slots filled to continue stacking the upper hub.
5) Locate the 28” x 8” Neo-Tex pieces that are 1/4" thick (thicker Neo-Tex material).
Load one piece onto each 8” clip to provide the fill for this row. Place 12 of these
assemblies into the previous slots filled to continue stacking the upper hub.
6) Locate the 32” x 10” Neo-Tex pieces that are 1/4" thick (thicker Neo-Tex material)
Load one piece onto each 10” clip to provide the fill for this row. Place 12 of these
assemblies into the previous slots filled to continue stacking the upper hub.

First, middle
and last slot
of a skin
FIGURE 2

Upper Hub

(Top view)

Top Row 32” x 10”
Insert into one 10” clip.
FIGURE 1 FIGURE 3

1MANUL247 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 45
