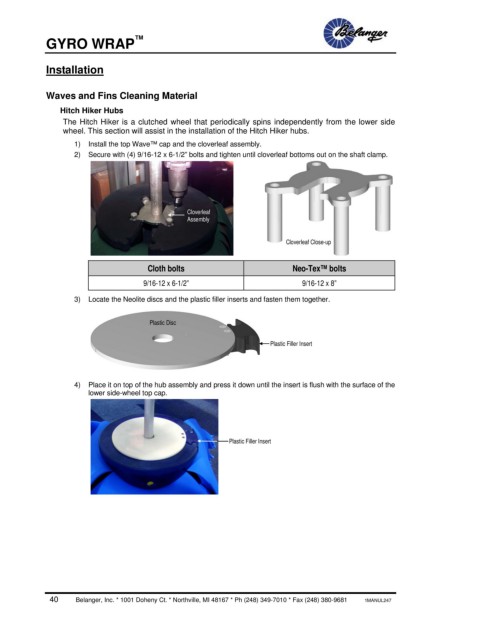

GYRO WRAP

Installation

Waves and Fins Cleaning Material

Hitch Hiker Hubs
The Hitch Hiker is a clutched wheel that periodically spins independently from the lower side
wheel. This section will assist in the installation of the Hitch Hiker hubs.
1) Install the top Wave™ cap and the cloverleaf assembly.
2) Secure with (4) 9/16-12 x 6-1/2” bolts and tighten until cloverleaf bottoms out on the shaft clamp.

Cloverleaf
Assembly

Cloverleaf Close-up

Cloth bolts Neo-Tex™ bolts
9/16-12 x 6-1/2” 9/16-12 x 8”

3) Locate the Neolite discs and the plastic filler inserts and fasten them together.

Plastic Disc

Plastic Filler Insert

4) Place it on top of the hub assembly and press it down until the insert is flush with the surface of the
lower side-wheel top cap.

Plastic Filler Insert
