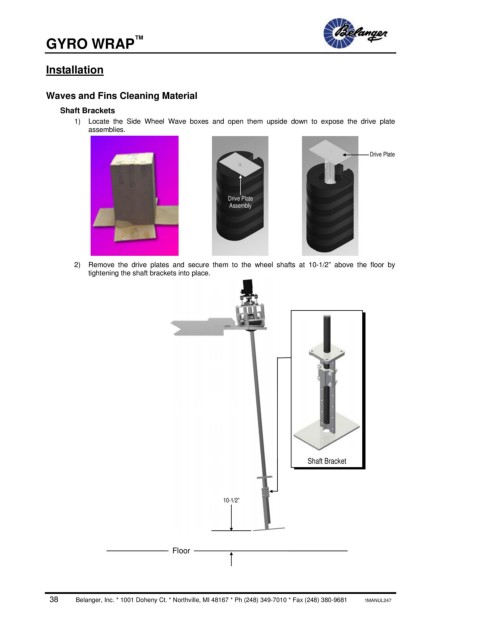

             GYRO WRAP


             Installation


             Waves and Fins Cleaning Material

                Shaft Brackets
                    1)  Locate the Side Wheel Wave boxes and open them upside down to expose  the  drive  plate
                       assemblies.


                                                                                               Drive Plate





                                                           Drive Plate
                                                           Assembly







                    2)  Remove the drive plates and secure them to  the wheel shafts at 10-1/2” above the floor by
                       tightening the shaft brackets into place.



























                                                                               Shaft Bracket




                                                          10-1/2”





                                             Floor
