GYRO WRAP
Installation

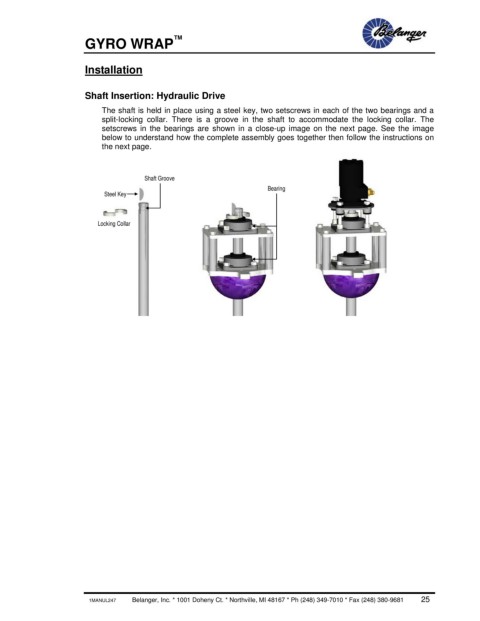

Shaft Insertion: Hydraulic Drive
The shaft is held in place using a steel key, two setscrews in each of the two bearings and a
split-locking collar. There is a groove in the shaft to accommodate the locking collar. The
setscrews in the bearings are shown in a close-up image on the next page. See the image
below to understand how the complete assembly goes together then follow the instructions on
the next page.
Shaft Groove
Bearing
Steel Key
Locking Collar
