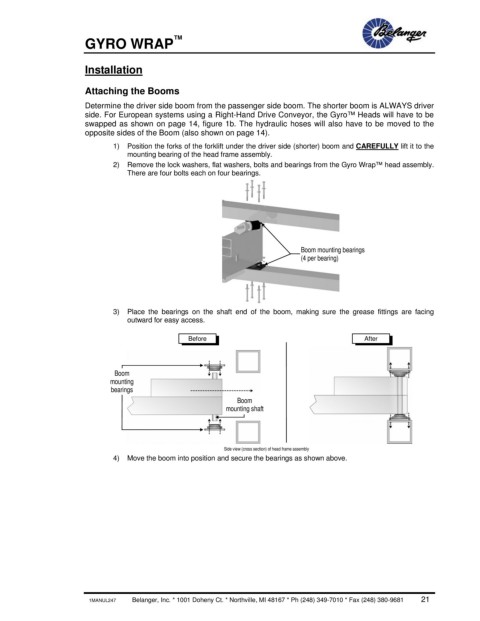

GYRO WRAP

Installation

Attaching the Booms
Determine the driver side boom from the passenger side boom. The shorter boom is ALWAYS driver
side. For European systems using a Right-Hand Drive Conveyor, the Gyro™ Heads will have to be
swapped as shown on page 14, figure 1b. The hydraulic hoses will also have to be moved to the
opposite sides of the Boom (also shown on page 14).

1) Position the forks of the forklift under the driver side (shorter) boom and CAREFULLY lift it to the
mounting bearing of the head frame assembly.
2) Remove the lock washers, flat washers, bolts and bearings from the Gyro Wrap™ head assembly.
There are four bolts each on four bearings.

Boom mounting bearings
(4 per bearing)

3) Place the bearings on the shaft end of the boom, making sure the grease fittings are facing
outward for easy access.

Before After

Boom
mounting
bearings
Boom
mounting shaft

Side view (cross section) of head frame assembly
4) Move the boom into position and secure the bearings as shown above.

1MANUL247 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 21
