P. 20
™
GYRO WRAP
Installation
Tunnel Placement
Standard, Standalone (Right-Hand Drive)

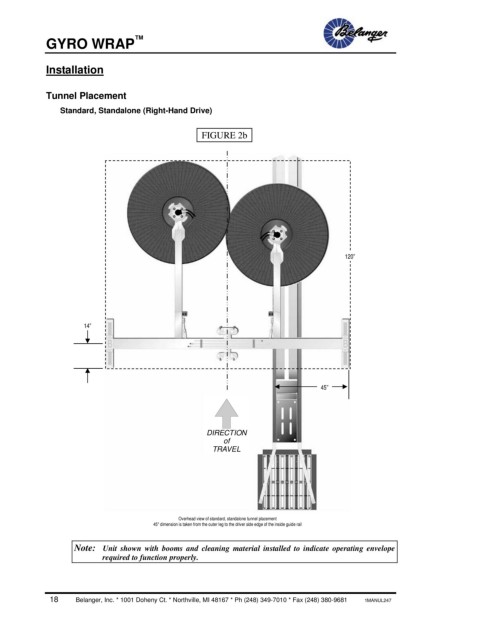

FIGURE 2b
120”
14”
45”
DIRECTION
of
TRAVEL
Overhead view of standard, standalone tunnel placement
45" dimension is taken from the outer leg to the driver side edge of the inside guide rail
Note: Unit shown with booms and cleaning material installed to indicate operating envelope
required to function properly.
18 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL247
