P. 26
™
GYRO WRAP
Installation

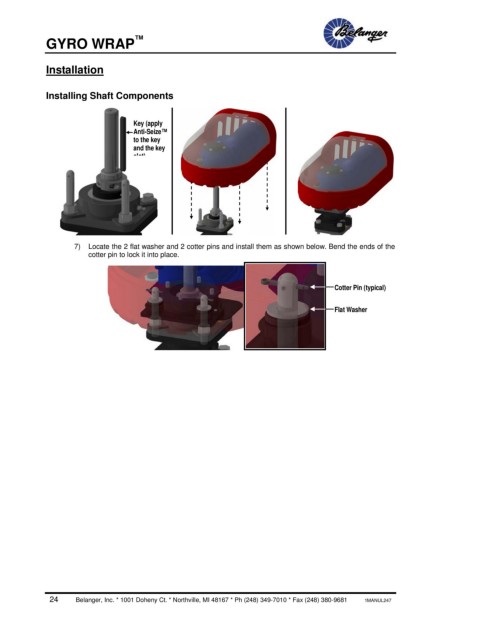

Installing Shaft Components
Key (apply
Anti-Seize™
to the key
and the key
slot)
7) Locate the 2 flat washer and 2 cotter pins and install them as shown below. Bend the ends of the
cotter pin to lock it into place.
Cotter Pin (typical)
Flat Washer
24 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL247
