GYRO WRAP
Maintenance

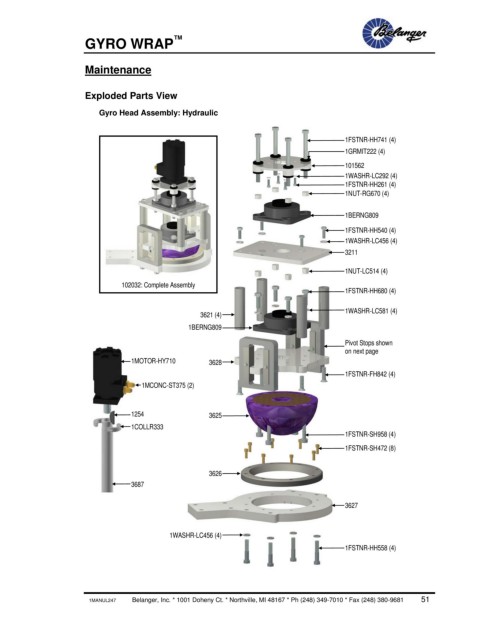

Exploded Parts View
Gyro Head Assembly: Hydraulic
1FSTNR-HH741 (4)
1GRMIT222 (4)
101562
1WASHR-LC292 (4)
1FSTNR-HH261 (4)
1NUT-RG670 (4)
1BERNG809
1FSTNR-HH540 (4)
1WASHR-LC456 (4)
3211
1NUT-LC514 (4)
102032: Complete Assembly
1FSTNR-HH680 (4)
1WASHR-LC581 (4)
3621 (4)
1BERNG809
Pivot Stops shown
on next page
1MOTOR-HY710 3628
1FSTNR-FH842 (4)
1MCONC-ST375 (2)
1254 3625
1COLLR333
1FSTNR-SH958 (4)
1FSTNR-SH472 (8)
3626
3687
3627
1WASHR-LC456 (4)
1FSTNR-HH558 (4)
