GYRO WRAP

Maintenance

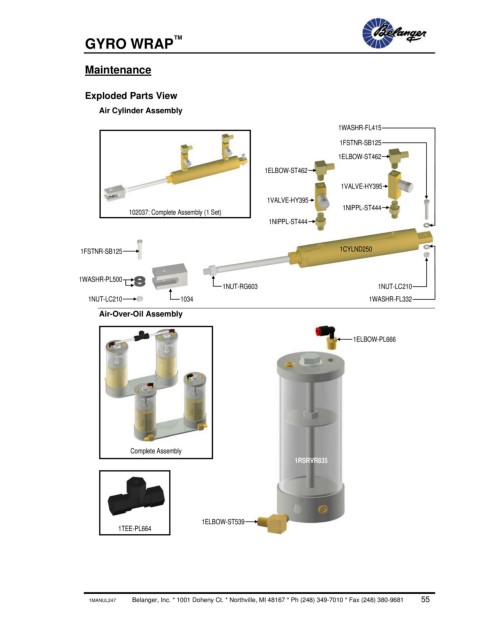

Exploded Parts View

Air Cylinder Assembly

1WASHR-FL415

1FSTNR-SB125
1ELBOW-ST462
1ELBOW-ST462

1VALVE-HY395
1VALVE-HY395
1NIPPL-ST444
102037: Complete Assembly (1 Set)
1NIPPL-ST444

1FSTNR-SB125 1CYLND250

1WASHR-PL500
1NUT-RG603 1NUT-LC210
1NUT-LC210 1034 1WASHR-FL332
Air-Over-Oil Assembly

1ELBOW-PL666

Complete Assembly
1RSRVR835

1ELBOW-ST539
1TEE-PL664

1MANUL247 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 55
