P. 55

™
                       GYRO WRAP


                       Maintenance

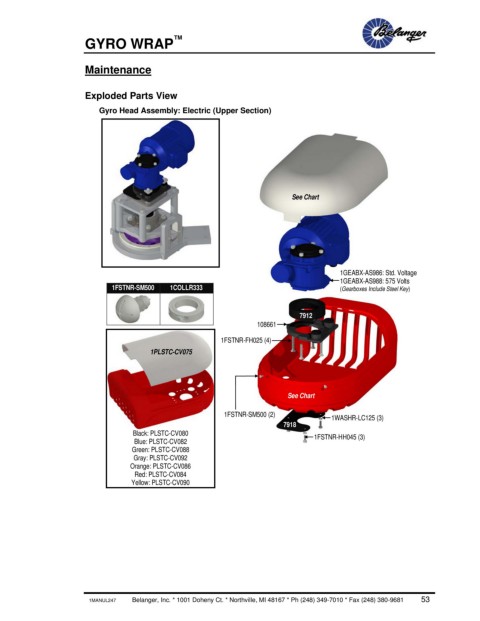

                       Exploded Parts View

                          Gyro Head Assembly: Electric (Upper Section)











                                                                           See Chart









                                                                                        1GEABX-AS986: Std. Voltage
                                                                                        1GEABX-AS988: 575 Volts
                             1FSTNR-SM500   1COLLR333                                   (Gearboxes Include Steel Key)



                                                                             7912
                                                                   108661

                                                         1FSTNR-FH025 (4)
                                       1PLSTC-CV075




                                                                          See Chart

                                                          1FSTNR-SM500 (2)            1WASHR-LC125 (3)
                                                                         7918
                                   Black: PLSTC-CV080
                                                                                                       1FSTNR-HH045 (3)
                                   Blue: PLSTC-CV082
                                   Green: PLSTC-CV088
                                   Gray: PLSTC-CV092
                                  Orange: PLSTC-CV086
                                   Red: PLSTC-CV084
                                  Yellow: PLSTC-CV090















                        1MANUL247            Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681        53
