GYRO WRAP

Maintenance

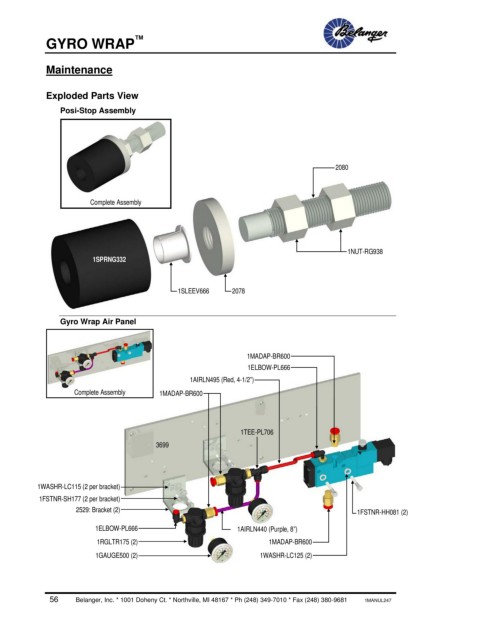

Exploded Parts View

Posi-Stop Assembly

2080

Complete Assembly

1NUT-RG938
1SPRNG332

1SLEEV666 2078

Gyro Wrap Air Panel

1MADAP-BR600

1ELBOW-PL666
1AIRLN495 (Red, 4-1/2”)

Complete Assembly 1MADAP-BR600

1TEE-PL706
3699

1WASHR-LC115 (2 per bracket)
1FSTNR-SH177 (2 per bracket)
2529: Bracket (2) 1FSTNR-HH081 (2)

1ELBOW-PL666 1AIRLN440 (Purple, 8”)
1RGLTR175 (2) 1MADAP-BR600
1GAUGE500 (2) 1WASHR-LC125 (2)

56 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL247
