P. 63
™
GYRO WRAP
Maintenance

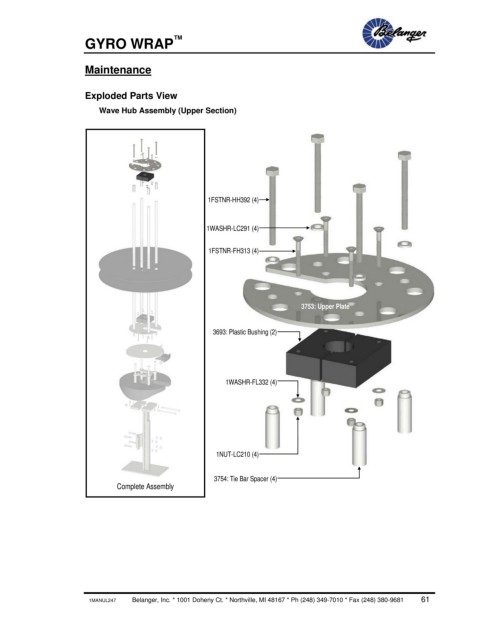

Exploded Parts View
Wave Hub Assembly (Upper Section)
1FSTNR-HH392 (4)
1WASHR-LC291 (4)
1FSTNR-FH313 (4)
3753: Upper Plate
3693: Plastic Bushing (2)
1WASHR-FL332 (4)
1NUT-LC210 (4)
3754: Tie Bar Spacer (4)
Complete Assembly
1MANUL247 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 61
