GYRO WRAP
Maintenance

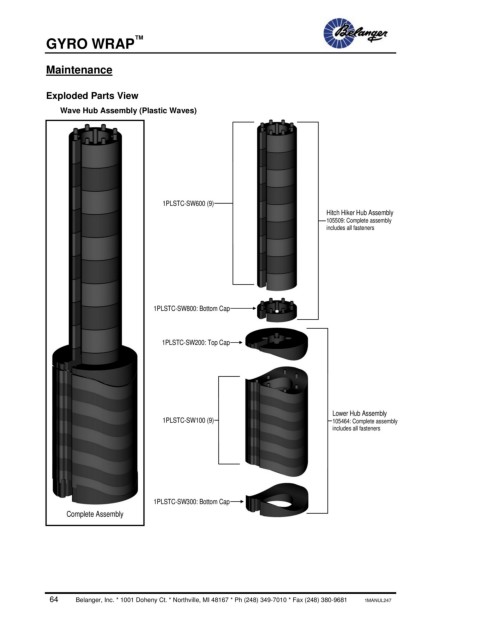

Exploded Parts View
Wave Hub Assembly (Plastic Waves)
1PLSTC-SW600 (9)
Hitch Hiker Hub Assembly
105509: Complete assembly
includes all fasteners
1PLSTC-SW800: Bottom Cap
1PLSTC-SW200: Top Cap
Lower Hub Assembly
1PLSTC-SW100 (9) 105464: Complete assembly
includes all fasteners
1PLSTC-SW300: Bottom Cap
Complete Assembly
