GYRO WRAP
Maintenance

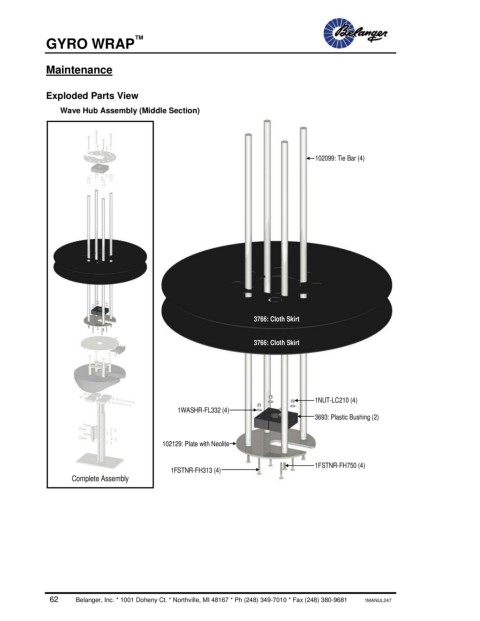

Exploded Parts View
Wave Hub Assembly (Middle Section)
102099: Tie Bar (4)
3766: Cloth Skirt
3766: Cloth Skirt
1NUT-LC210 (4)
1WASHR-FL332 (4)
3693: Plastic Bushing (2)
102129: Plate with Neolite
1FSTNR-FH750 (4)
1FSTNR-FH313 (4)
Complete Assembly
