GYRO WRAP
Maintenance

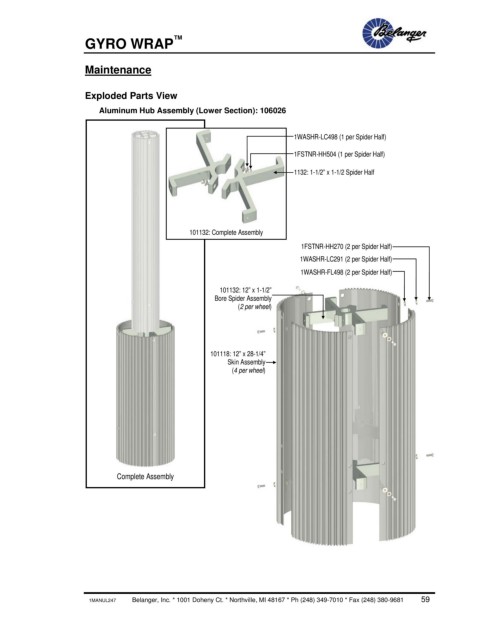

Exploded Parts View
Aluminum Hub Assembly (Lower Section): 106026
1WASHR-LC498 (1 per Spider Half)
1FSTNR-HH504 (1 per Spider Half)
1132: 1-1/2” x 1-1/2 Spider Half
101132: Complete Assembly
1FSTNR-HH270 (2 per Spider Half)
1WASHR-LC291 (2 per Spider Half)
1WASHR-FL498 (2 per Spider Half)
101132: 12” x 1-1/2”
Bore Spider Assembly
(2 per wheel)
101118: 12” x 28-1/4”
Skin Assembly
(4 per wheel)
Complete Assembly
