GYRO WRAP
Maintenance

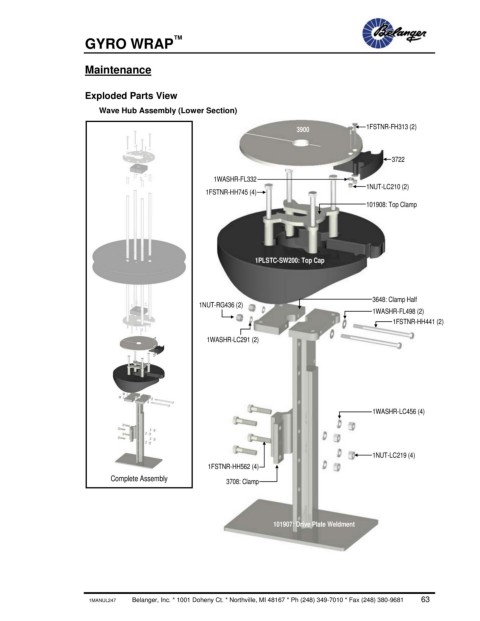

Exploded Parts View
Wave Hub Assembly (Lower Section)
3900 1FSTNR-FH313 (2)
3722
1WASHR-FL332
1NUT-LC210 (2)
1FSTNR-HH745 (4)
101908: Top Clamp
1PLSTC-SW200: Top Cap
3648: Clamp Half
1NUT-RG436 (2)
1WASHR-FL498 (2)
1FSTNR-HH441 (2)
1WASHR-LC291 (2)
1WASHR-LC456 (4)
1NUT-LC219 (4)
1FSTNR-HH562 (4)
Complete Assembly 3708: Clamp
101907: Drive Plate Weldment
