Page 68 - Gyro Wrap™

™
GYRO WRAP

Maintenance

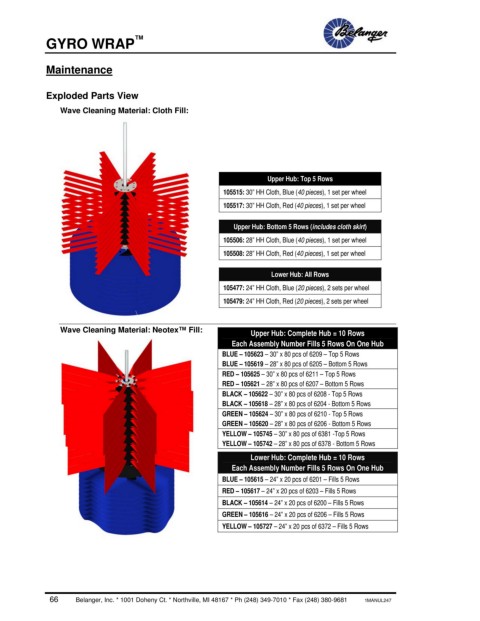

Exploded Parts View

Wave Cleaning Material: Cloth Fill:

Upper Hub: Top 5 Rows
105515: 30” HH Cloth, Blue (40 pieces), 1 set per wheel
105517: 30” HH Cloth, Red (40 pieces), 1 set per wheel

Upper Hub: Bottom 5 Rows (includes cloth skirt)
105506: 28” HH Cloth, Blue (40 pieces), 1 set per wheel
105508: 28” HH Cloth, Red (40 pieces), 1 set per wheel

Lower Hub: All Rows
105477: 24” HH Cloth, Blue (20 pieces), 2 sets per wheel
105479: 24” HH Cloth, Red (20 pieces), 2 sets per wheel

Wave Cleaning Material: Neotex™ Fill: Upper Hub: Complete Hub = 10 Rows
Each Assembly Number Fills 5 Rows On One Hub
BLUE – 105623 – 30” x 80 pcs of 6209 – Top 5 Rows
BLUE – 105619 – 28” x 80 pcs of 6205 – Bottom 5 Rows
RED – 105625 – 30” x 80 pcs of 6211 – Top 5 Rows
RED – 105621 – 28” x 80 pcs of 6207 – Bottom 5 Rows
BLACK – 105622 – 30” x 80 pcs of 6208 - Top 5 Rows
BLACK – 105618 – 28” x 80 pcs of 6204 - Bottom 5 Rows
GREEN – 105624 – 30” x 80 pcs of 6210 - Top 5 Rows
GREEN – 105620 – 28” x 80 pcs of 6206 - Bottom 5 Rows
YELLOW – 105745 – 30” x 80 pcs of 6381 -Top 5 Rows
YELLOW – 105742 – 28” x 80 pcs of 6378 - Bottom 5 Rows

Lower Hub: Complete Hub = 10 Rows
Each Assembly Number Fills 5 Rows On One Hub
BLUE – 105615 – 24” x 20 pcs of 6201 – Fills 5 Rows
RED – 105617 – 24” x 20 pcs of 6203 – Fills 5 Rows
BLACK – 105614 – 24” x 20 pcs of 6200 – Fills 5 Rows
GREEN – 105616 – 24” x 20 pcs of 6206 – Fills 5 Rows
YELLOW – 105727 – 24” x 20 pcs of 6372 – Fills 5 Rows
